RELIABILITY TEST LAB SERVICES

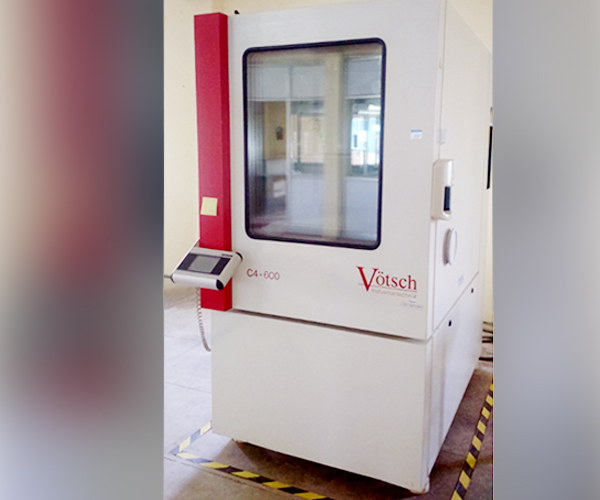

VOTSCH CLIMATIC CHAMBER

  • Model: C4-600 (Air cooled)
  • Temp range:(-40°C to +180°C)
  • Humidity range:10% to 95% RH
  • Inside dim:W800 X D800 X H950mm

ESPEC OVEN

  • Model: PH-200
  • Temp. range:+1°C to 200°C
  • Inside dim: W 600 X D 600 X H 600 mm

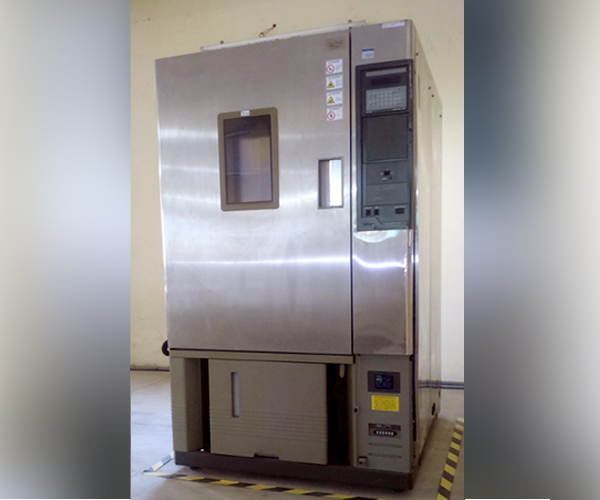

ESPEC CLIMATIC CHAMBER

  • Model: PR -3SP
  • Temp range : -20 degree c to +100 degree c
  • Humidity range: : 20% to 98% RH
  • Inside dim:W600 X H850 X D800mm

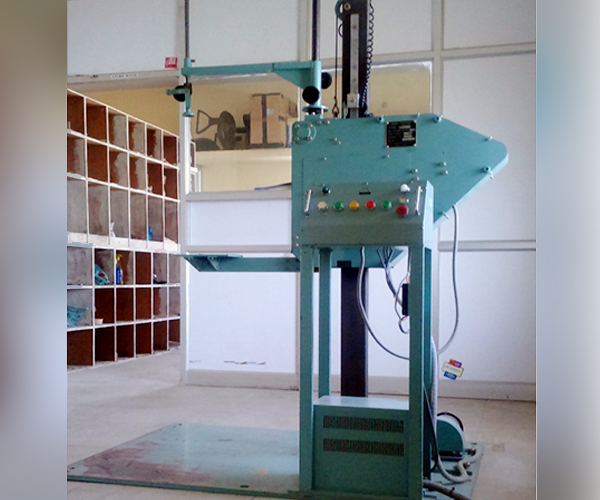

DROP TESTER

  • Model:DT-50(Yoshida)
  • Specimen Max size: L900 X W510 X H900mm
  • Specimen Max wt: 70kg
  • Drop height range: 200 X 1000mm

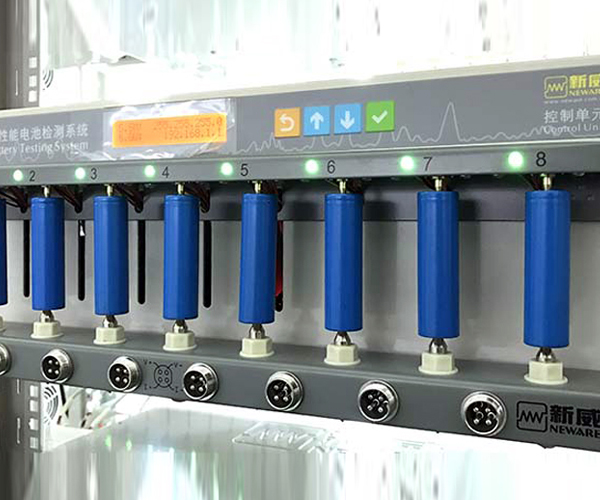

LI-ION BATTERY CYCLIC TESTER

  • Model: BTS 4000 5V-6A-8CH
  • Make: Neware
  • Cell Type: Cylindrical ( 18650, 21700) , Pouch, Coin
  • Voltage Range : Upto 5V DC
  • Current Range : Upto 6A DC
  • No of cells : Maximum upto 8 Cells can be tested.

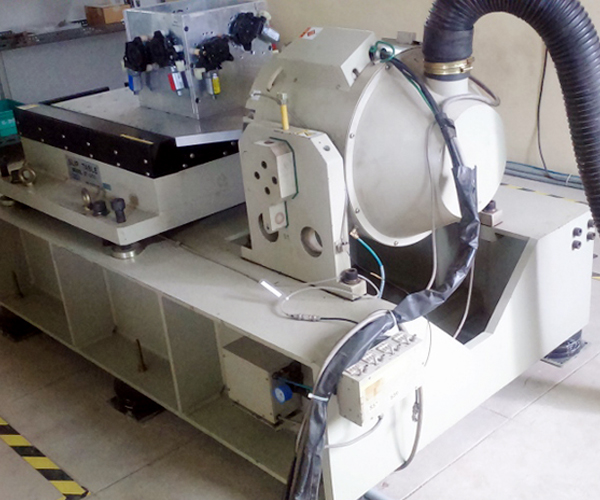

EMIC VIBRATION TEST SYSTEM

  • Model: F-600BM/A-E90
  • Sine Force: 600 Kgf peak
  • Random force: 420 kgf rms
  • Frequency range: 5Hz to 2300Hz
  • Max.Stroke: 30 mm peak to peak at no load
  • Max. Acceleration: 70G at no load
  • Max. velocity: 150cm/s
  • Max. payload wt: 200 kg
  • Max. bare table Acc: 70.5 Peak
  • Armature weight: 8.5kg

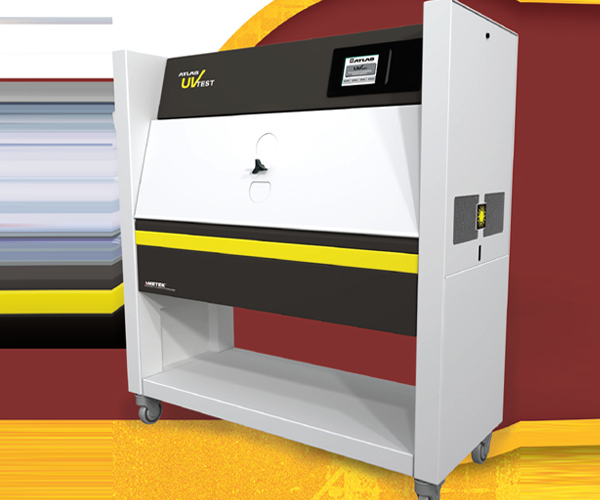

UV TEST CHAMBER

  • Model: UV Test
  • Make:Atlas
  • Light Source: 8 x 40W ( UVA 340, UVB 313, UVA351)
  • Irradiance Control: Automatic control at 320nm or 340nm
  • Irradiance Ratings: Minimum 0.35W/m2 (UVA, UVB), Maximum 1.55W/m2(UVA), 1.23W/m2 (UVB)
  • BPT Temperature Range: UV Phase – BPT 35 to 80 Deg C,
  • ondensation Phase: BPT 35 to 60 Deg C.
  • Specimen Capacity: 48 + BPT in 24 specimen holders.

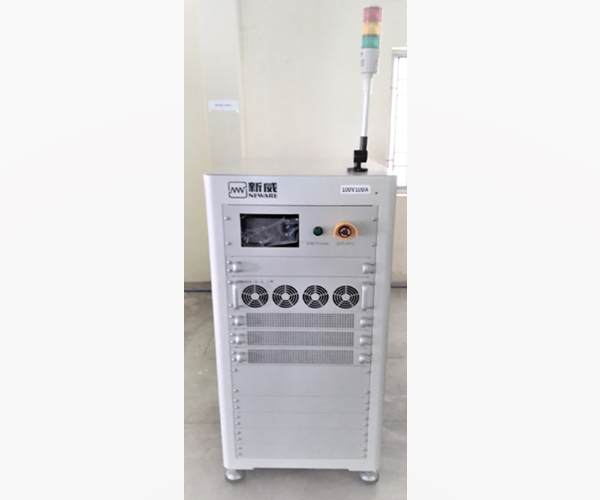

LI-ION BATTERY PACK CYCLIC TESTER

  • Model: CE-6002n-100V100A-H
  • Make: Neware
  • Voltage Range: Upto 100V DC
  • Current Range: Upto 200A DC (In Parallel Mode)
  • No of Packs: 2 nos can be tested.
