Modular Battery Charger
Modular Battery Charger AC/DC is designed with a modern philosophy of modular conception technology to ensure high reliability, handling and maintenance of DC power supply.
MAIN FEATURES:
- Switched-mode rectifier
- Power range per module from 250 W to 4400 W
- Input voltage from 90 V to 320 Vac
- Suitable for all common voltages: 12V, 24V, 48V, 108 to 110V, 125V, 216 to 220 Vdc
- 19” Rack design (23” Rack design – optional)
- Modular design
- Digital controller external battery
AVAILABILITY:
- N+1 redundancy
- Hot swap conception
- Energy save via sleep mode
- Temperature controlled charging
- Battery test during operation
- Local and remote control
- LVDB system protection battery
- Over voltage protection for system and modules
ECONOMIC EFFICIENCY:
- High performance beside low volume and weight
- High efficiency, power factor 0,99
- Suitable for lead and NiCad batteries
- All-inclusive system

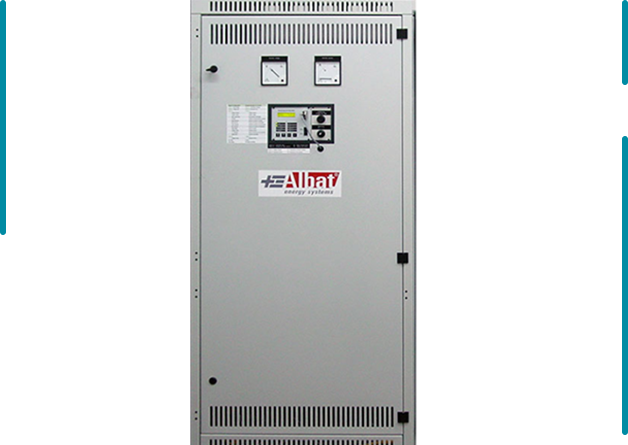

Thyristor Rectifiers AC/DC
Thyristor Rectifiers AC/DC developed by ALBAT is especially qualified for use as battery backed up power supplies.
MAIN FEATURES:
- Microprocessor controlled Thyristor Technology
- Built in output transformer topology
- Advanced technology for phase control
- Suitable for all common voltages: 24V, 48V, 108 to 110V, 216 to 220 Vdc
- User Friendly Control Panel
- Digital controller
- External battery
AVAILABILITY:
- Galvanically isolated
- Ability to operate as voltage or current source
- Temperature controlled charging
- Battery test during operation
- Local and remote control
- LVDB system protection battery
- Over voltage protection for system
ECONOMIC EFFICIENCY:
- Very low voltage ripple and extended battery life
- High efficiency and low operation cost
- Suitable for lead and NiCad batteries
- All-inclusive system
